M-17 Pistol

TC 3 23 35
PDF – 11.3 MB 39 downloads
PMI M 9 M 17 TC 3 23 35
PDF – 2.6 MB 51 downloads

The Modular Handgun System (MHS) pistol is a mechanically locked, short-recoil operated 9mm pistol, featuring an automatic striker pin safety lock, ambidextrous manual safety and external ambidextrous slide catch lever. The MHS provides a lightweight, operator friendly, flexible, lethal and reliable tool that provides personnel with a personal offensive/defensive capability to engage targets in the field. The MHS pistol features a polymer grip module that is available in three different sizes to accommodate different personnel hand sizes.

  • Caliber: 9 mm
  • Magazine Capacity: 17 rounds (standard) or 21 rounds extended
  • Weight: 26.90 ounces without magazine
  • Length: 8.05 inches
  • Barrel Length: 4.7 inches
  • Range: 50 meters
M 17 TM Pdf
PDF – 7.1 MB 10 downloads

PMI part 1-4 are the MMTC slides the file was to big for this site. There are 73 slides Part 1, 1-20 Part 2, 21-40 Part 3, 41-61 Part 4, 62-73. Put these in order to make a full presentation.

Pistol PMI Part 1
PowerPoint – 4.0 MB 44 downloads
Pistol PMI Part 2
PowerPoint – 3.8 MB 34 downloads
Pistol PMI Part 3
PowerPoint – 25.7 MB 39 downloads
Pistol PMI Part 4
PowerPoint – 33.5 MB 39 downloads

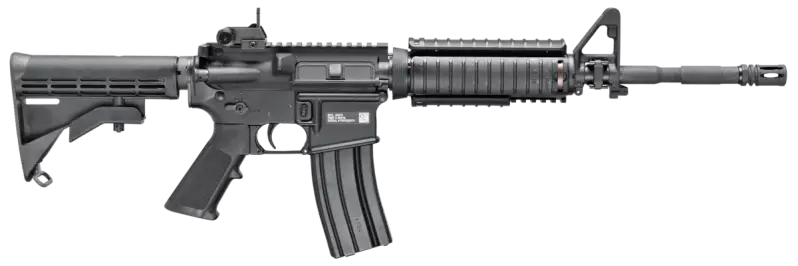

M4 Carbine

Tc 3 22 9
PDF – 13.7 MB 57 downloads

The M4 is an air cooled, gas operated, magazine fed, hand held, shoulder fired weapon. It fires either on semi-automatic, automatic or three round burst.

Max Effective Range:  Point Target: 500m     Area Target: 600m

Max Range: 3600m        Muzzle Velocity: 2970 Feet Per Second

Weight: (Unloaded with no sling: 6.49lbs) (20 Rd mag and sling: 7.19lbs)
(30 Rd mag and sling: 7.5lbs)    Length: (33in Stock extended)  (29.75in Stock retracted)

M 4 TM Pdf
PDF – 743.8 KB 8 downloads

M249 Light machine gun Squad Automatic Weapon

The Squad Automatic Weapon (SAW), or 5.56mm M249 is an individually portable, gas operated, magazine or disintegrating metallic link-belt fed, light machine gun with fixed headspace and quick change barrel feature, fired from the open bolt position.

Max Effective Range: (Point Target 600m  Area target: 800m)  (With tripod: Point Target 800m Area Target: 1000)  Max Range: 3600m

Length: 40.87  Weight 16.41lbs

Rate of Fire: Rate of Fire (Cyclic)850 rounds/minute (w/ barrel change after 1 minute)Rate of Fire (Cyclic)725 rounds/minute Rate of Fire (Rapid)200 rounds/minute (w/ barrel change after 2 minutes)Rate of Fire (Sustained)85 rounds/minute (w/ no barrel change)

Tc 3 22 249
PDF – 16.5 MB 44 downloads
PMI M 249 AR TC 3 22 249
PDF – 2.2 MB 49 downloads
PMI M 249 LMG TC 3 22 249
PDF – 2.0 MB 53 downloads
Operators Manuel
PDF – 8.8 MB 52 downloads
M 249 Performance Measures STT
PDF – 122.9 KB 50 downloads
TM M 249 Pdf
PDF – 3.0 MB 32 downloads

M240B Medium Machine Gun

TC 3 22 240
PDF – 13.9 MB 49 downloads
PMI M 240 TC 3 22 240
PDF – 1.8 MB 46 downloads

The M240B is a general-purpose machine gun. It can be mounted on a bipod, tripod, aircraft, or vehicle. The M240B is a belt-fed, air-cooled, gas-operated, fully automatic machine gun that fires from the open bolt position. This reliable 7.62mm machine gun delivers more energy to the target than the smaller caliber M-249 SAW.

Max Effective Range: (Point Target 600m) (Area Target 800m) (with tripod: Point Target: 800m) (Area Target: 1100m)

Max Range: 3725m    Weight: 27.6lbs  Length: 49.7in  Muzzle Velocity: 2800ft/s

Rates of fire: (Sustain Rate 100 RPM. 6-9 Round Bursts with 4-5 seconds between bursts. Barrel change every 10 minutes.) Rapid Rate: ( 200 RPM. 10-12 Round Bursts with 2-3 seconds between bursts. Barrel change every 2 minutes.) Cyclic Rate: (650-950 RPM fired in a continuous burst. Barrel change every minute.)

M 240 TM Pdf
PDF – 6.6 MB 8 downloads

M240C

The M240C is the variant of the M240 that is currently used
on the U.S. M2 and M3 Bradley armored fighting vehicles.
The M240C is identical to the M240 except for the ammunition
feed cover and feed tray.

TC 3 22 240
PDF – 13.9 MB 43 downloads
PMI M 240 TC 3 22 240
PDF – 1.8 MB 47 downloads
M 240 TM Pdf
PDF – 6.6 MB 7 downloads

M240L Light Machine Gun

TC 3 22 240
PDF – 13.9 MB 40 downloads
PMI M 240 TC 3 22 240
PDF – 1.8 MB 47 downloads

The M240L is a general-purpose machine gun. It can be mounted on a bipod, tripod, aircraft, or vehicle. The M240L is a belt-fed, air-cooled, gas-operated, fully automatic machine gun that fires from the open bolt position. This reliable 7.62mm machine gun delivers more energy to the target than the smaller caliber M-249 SAW.

Max Effective Range: (Point Target 600m) (Area Target 800m) (with tripod: Point Target: 800m) (Area Target: 1100m)

Max Range: 3725m    Weight: 22.6lbs  Length: 49in  Muzzle Velocity: 2800ft/s

Rates of fire: (Sustain Rate 100 RPM. 6-9 Round Bursts with 4-5 seconds between bursts. Barrel change every 10 minutes.) Rapid Rate: ( 200 RPM. 10-12 Round Bursts with 2-3 seconds between bursts. Barrel change every 2 minutes.) Cyclic Rate: (650-950 RPM fired in a continuous burst. Barrel change every minute.)

M 240 TM Pdf
PDF – 6.6 MB 7 downloads

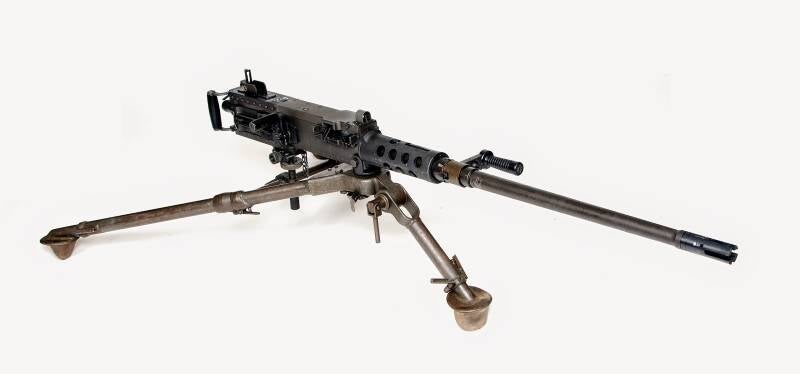

M2 50CAL Heavy Machine Gun

TC 3 22 50
PDF – 19.9 MB 61 downloads
PMI M 2 HMG TC 3 22 50
PDF – 2.7 MB 43 downloads

The Browning machine gun caliber .50 HB, M2 is a belt-fed, recoil-operated,air-cooled, crew-served machine gun. The gun is capable of single shot, as well as automatic fire, and operates on the short recoil principle.

Max Effective Range: (Point Target: 1500m) (Area target: 1830m)

Max Range: 6764m  Weight: 84lbs   Length: 65i

Rates of Fire: (Single shot: Place the gun in the single-shot mode and engage the target with aimed shots. The machine gun is accurate out to 1,500 meters.) (Slow Method: Slow fire consists of less than 40 rounds per minute, in bursts of five to seven rounds, fired at 10- to 15-second intervals.) (Rapid Method: Rapid fire consists of more than 40 rounds per minute, fired in bursts of five to seven rounds, at 5- to 10-second intervals.) (Cyclic Method: Cyclic fire is when the weapon fires 450 to 550 rounds per minute.)

50 CAL TM Pdf
PDF – 5.6 MB 6 downloads

M320 Grenade Launcher

The M320/M320A1 40 MM Grenade Launcher Module (GLM) is a lightweight grenade launcher that attaches under the barrel of the M16 series rifles (M320) or the M4 series carbines (M320A1). The M320/M320A1 Grenade Launcher enables Soldiers to accurately engage the enemy in daylight or total darkness out to 400 meters with 40mm low-velocity grenades.

Max Effective Range: (Point Target: 150m) (Area Target: 350m)

Max Range: 400m

Weight: 5.0 pounds (without buttstock); 7.0 pounds (with buttstock)

Length: 11.18 inches (without buttstock); 14.37 (with buttstock retracted); 19.69 inches (with buttstock extended)

Muzzle Velocity: 236fp/s          Rate of fire: 5 to 7 rounds per minuet



TM 3 22 31
PDF – 11.7 MB 43 downloads
M 320 TM Pdf
PDF – 11.7 MB 9 downloads
M 320 PMI
PowerPoint – 9.8 MB 40 downloads

MK19 40mm Machine Gun

TC 3 22 19
PDF – 16.4 MB 42 downloads

The MK19 40mm machine gun, MOD 3 is an air-cooled, disintegrating metallic link-belt fed, blowback operated, fully automatic weapon and is crew transportable over short distances with limited amounts of ammunition. It can fire a variety of 40mm grenades. The M430 HEDP 40mm grenade will pierce armor up to 2 inches thick, and will produce fragments to kill personnel within 5 meters and wound personnel within 15 meters of the point of impact. Associated components are: MK64 Cradle Mount, MOD 5; M3 Tripod Mount; and the AN/TVS-5 Night Vision Sight. The MK19 also mounts in the up-gunned weapons station of the LVTP7A1 model of the AAV and vehicle ring mounts.

Max Effective Range: (Point target: 1500m) (Area target: 2200m)

Max Range: 2212        Weight: 77.6lbs     Length: 43.1''

Muzzle Velocity: 240.69 meters per second

Rates of Fire: (Sustain: 40 Rounds per min) (Rapid: 60 Rounds per min) (Cyclic: 325-375 Rounds per min)

PMI Mk 19 GMG TC 3 22 19
PDF – 2.2 MB 50 downloads
MK 19 TM Pdf
PDF – 1.5 MB 8 downloads

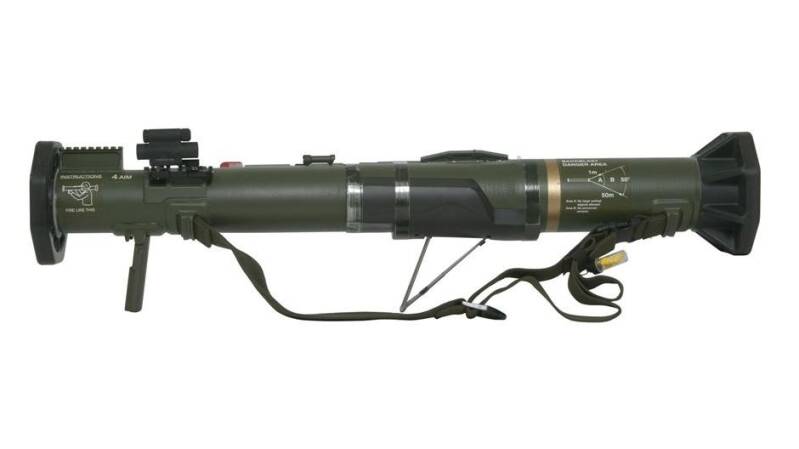

The AT4

TM 3 23 25
PDF – 12.9 MB 41 downloads

The M136 AT4 is a 84mm, lightweight, self-contained, anti-armor weapon. It consists of a free-flight, fin-stabilized, rocket-type cartridge packed in an expendable, one-piece, fiberglass-wrapped tube.

Maximum Effective Range: (Point target: 15m) (Area Target: 300m)                  Max Range: 2100   Weight: 14.8lbs    Length: 40in       Length of rocket: 18in






Javelin

The FGM-148 Javelin is a man-portable, “fire-and-forget” antitank guided missile (ATGM) system with an effective range of 2.5 km. It was designed to defeat heavily armored vehicles such as main battle tanks and lighter-skinned military vehicles. The weapon also has capability against other target types like fortifications, bunkers, and helicopters.

Weight: 26lbs (missile)   14lbs(CLU)

Length: 1.2m (launcher tube) (1.1m missile)

Rate of fire: 1-shot , discarded after firing CLU can be reused

Effective Range: 75m to 2500m



TC 3 22 37
PDF – 42.8 MB 46 downloads

Hand Grenades


M67 fragmentation hand grenade

Fragmentation. These grenades are used to produce casualties by
high-velocity projection of fragments.

The components of the M67 fragmentation hand grenade (Figure 1-7) are:
• Body: steel sphere with a scored steel spring for fragmentation.
• Filler: 6.5 ounces of Composition B.
• Fuse: M213.
• Weight: 14 ounces.
• Safety Clip

Capabilities. The average soldier can throw the M67 grenade 35 meters. The
effective casualty-producing radius is 15 meters and the killing radius is 5 meters.

Colors and Markings. The M67 grenade has an olive drab body with a single
yellow band at the top. Markings are in yellow.

TC 3 23 30
PDF – 7.6 MB 36 downloads

Colored Smoke Grenades

TC 3 23 30
PDF – 7.6 MB 44 downloads

Smoke hand grenades are used as ground-to-ground or ground-to-air signaling devices, target or landing zone marking devices, or screening devices for unit movements.

*Body: sheet steel cylinder. Current and recent production configuration is
one taped grenade bottom hole and no top emission holes.
• Filler: 11.5 ounces of colored smoke mixture (red, yellow, green, or violet).
• Fuse: M201A1.
• Weight: 19 ounces.




RIOT-CONTROL HAND GRENADES

TC 3 23 30
PDF – 7.6 MB 52 downloads

ABC-M7A2 and ABC-M7A3. These riot-control hand grenades (Figure 1-11)
contain only CS as a filler. The grenades differ only in the amount and form of the CS
they contain. The components are:
• Body: sheet metal with four emission holes at the top and one at the bottom.
• Filler: The ABC-M7A2 grenade has 5.5 ounces of burning mixture and 3.5
ounces of CS in gelatin capsules. The ABC-M7A3 has 7.5 ounces of burning
mixture and 4.5 ounces of CS pellets.
• Fuse: M201A1 MOD2
• Weight: 15.5 ounces.

Capabilities. The average soldier can throw either of these grenades 40 meters.
Both grenades produce a cloud of irritant agent for 15 to 35 seconds.

Colors and Markings. Both grenades have gray bodies with red bands and
markings.


AN-M14 TH3 incendiary hand grenade

TC 3 23 30
PDF – 7.6 MB 45 downloads

The AN-M14 TH3 incendiary hand grenade (Figure 1-14) is used to
destroy equipment or start fires. It can also damage, immobilize, or destroy vehicles,
weapons systems, shelters, or munitions. The components are:
• Body: sheet metal.
• Filler: 26.5 ounces of thermate (TH3) mixture.
• Fuse: M201A1.
• Weight: 32 ounces

Capabilities. The average soldier can throw the AN-M14 grenade 25 meters. A
portion of thermate mixture is converted to molten iron, which burns at 4,330 degrees Fahrenheit. The mixture fuses together the metallic parts of any object that it contacts. Thermate is an improved version of thermite, the incendiary agent used in hand grenades during World War II. The thermate filler can burn through a 1/2-inch homogenous steel plate. It produces its own oxygen and burns under water.

Colors and Markings. The AN-M14 is gray with purple markings and has a
single purple band (current grenades). Under the standard color-coding system,
incendiary grenades are light red with black markings.


The Mk3A2 offensive hand grenade

The Mk3A2 offensive hand grenade (Figure 1-15, page 1-16),
commonly referred to as the concussion grenade, produces casualties during close combat while minimizing danger to friendly personnel. The grenade is also used for concussion effects in enclosed areas, for blasting, and for demolition tasks. The shock waves (overpressure) produced by this grenade when used in enclosed areas are greater than those produced by the fragmentation grenade. It is, therefore, more effective against enemy soldiers located in bunkers, buildings, and fortified areas. The components are:
• Body: fiber (similar to the packing container for the fragmentation grenade)
• Filler: 8 ounces of TNT.
• Fuse: M206A2.
• Weight: 15.6 ounces.
• Safety Clip: may be issued with or without a safety clip.

Capabilities. The average soldier can throw the Mk3A2 grenade 40 meters. It has an effective casualty radius of 2 meters in open areas, but fragments and bits of fuse may be projected as far as 200 meters from the detonation point.

Colors and Markings. The Mk3A2 grenade is black with yellow markings around
the middle.

TC 3 23 30
PDF – 7.6 MB 50 downloads

The M69 practice hand grenade

The M69 practice hand grenade simulates the M67-series of fragmentation grenades for training purposes. The M69 provides realistic training and familiarizes the Soldier with the functioning and characteristics of the fragmentation hand grenade. The components of the M69 are:
• Body: steel sphere.
• Filler: none.
• Fuse: M228, which is inserted into the grenade body.
• Weight: 14 ounces.
• Safety Clip: Yes.

Capabilities. The average soldier can throw the M69 hand grenade 40 meters.
After a delay of 4 to 5 seconds, the M69 emits a small puff of white smoke and makes a loud popping noise. The grenade body can be used repeatedly by replacing the fuse assembly.

Colors and Markings. The M69 is light blue with white markings. The safety
lever of the fuse is light blue with black markings and a brown tip.

TC 3 23 30
PDF – 7.6 MB 46 downloads

PVS-14

PVS 14 Training Manual
PDF – 3.7 MB 39 downloads

The PVS-14 Alpha is currently the primary night vision optic used by the U.S. military and Special Operations units.

Powered by an Autogated Gen 3 image intensifier, the system has recently been redesigned to operate on a single "AA" battery. The PVS-14A includes a built-in IR illuminator, fully adjustable headmount and mil-spec multi-coated optics. Automatic Brightness Control and Bright Source Protection are standard.

The manual gain control feature allows the user to increase or decrease image tube brightness for best possible image contrast in high and low light conditions. The most versatile night vision system on the market, the PVS-14 Alpha can be used hands-free, weapons mounted or attached to a camera or camcorder for nighttime photography.

Magnification: 1x

Range: 150m

Power: 1x AA battery

PVS 14 TM Pdf
PDF – 3.7 MB 11 downloads

PVS-7B

The AN/PVS-7B/D is the standard issue goggle for U.S. ground forces to conduct night operations. Using the latest 3rd generation image intensifier tubes the AN/PVS-7B/D will perform in the darkest of nights. The system has a built-in IR Illuminator for no light operations and an auto-off under high light conditions. The AN/PVS-7B/D is a completely MIL-SPEC system that has been ruggedized and waterproofed for harsh environments.



PVS 7 Training Manual
PDF – 2.7 MB 48 downloads

PSQ-20

The AN/PSQ-20 Enhanced Night Vision Goggle (ENVG) provides increased capability by incorporating image intensification and long-wave infrared sensors into a single, helmet-mounted passive device.

The ENVG combines the visual detail in low light conditions that is provided by image intensification with the thermal sensor’s ability to see through fog, dust, and foliage that obscure vision. This thermal capability makes the ENVG, unlike earlier night vision devices, useful during the day as well as at night. The ENVG allows Soldiers to rapidly detect and engage targets because it permits use of existing rifle-mounted aiming lights.

Several engineering enhancements to the ENVG improve its fit and function. For example, putting the battery pack on the rear of the helmet provides better balance and increases comfort as well as stability. The system is also designed to work with existing ballistic eye protection. In addition, the system is now more compact and easier to stow when not in use, which enhances the Soldier’s mobility.


Back Up Iron Site

The Back-Up Iron Sites (BUIS) are a set of front and rear sights that can be used if the primary optic fails or for close work. They can be flipped up, fixed, angled, offset, or hybrid. They are usually made of metal, plastic, or both. They should be compatible with the rifle and the rail system.


M68 Close Combat Optic (CCO)

TM 9 1240 415 13 And P
PDF – 972.2 KB 49 downloads

The M68 Close Combat Optic (CCO) is a unity power, red dot aiming device that enhances target acquisition speed, allowing Soldiers to engage targets up to 300 meters with both eyes open to maintain situational awareness. The M68 CCO is compatible with all current night vision enhancements. It is the standard issue sight for the M4/M16.

  • Weight (sight only): COMP M2: 7.0 ounces; COMP M4 or M4S: 9.3 ounces
  • Length: COMP M2: 5.1 inches; COMP M4 or M4S: 5.3 inches
  • Magnification: None
M 68 TM Pdf
PDF – 2.1 MB 7 downloads

M150 Rifle Combat Optic (RCO)

The M150 Rifle Combat Optic (RCO) is a rugged, battery-free, 4x magnified optic that provides full mission profile optical capability for use on M4/M16/M249 weapon systems. Enhanced capabilities provided by the M150 RCO include range estimation, which, with the bullet drop compensated reticle, provides accurate target engagements from 300 to 600 meters for trained operators.

  • Weight: 1.004 pounds
  • Length: 7.8 inches
  • Magnification: 4 power
TM 9 1240 416 13 And P
PDF – 3.4 MB 51 downloads
M 150 ACOG TM Pdf
PDF – 3.4 MB 7 downloads

Thermal Weapon Sight (TWS), AN/PAS-13

The AN/PAS-13 Thermal Weapon Sight (TWS) provides Soldiers with individual and crew served weapons the capability to see deep into the battlefield. It increases surveillance and target acquisition range, and penetrates obscurants either day or night. The TWS systems use uncooled, forward-looking infrared technology. It provides a standard video output for training, image transfer or remote viewing. TWS are lightweight systems that Soldiers can mount on a standard weapon rail and operate beyond the maximum effective range of the weapon.

PM SMS has fielded 17 micron (17um) sensor technology that provides size, weight and power improvements over previous configurations.

The TWS family comprises three variants, each of which is a silent, lightweight, compact, durable and battery-powered thermal sight. They are:

  • AN/PAS-13(V)1 Light Weapon Thermal Sight (LWTS) for the M16 / M4 series rifles and carbines, as well as the M136 Light Anti-Armor Weapon.
  • AN/PAS-13(V)2 Medium Weapon Thermal Sight (MWTS) for the M249 Squad Automatic Weapon (SAW) and M240B series Medium Machine Guns.
  • AN/PAS-13(V)3 Heavy Weapon Thermal Sight (HWTS) for the squad leader’s weapon, M16 / M4 series rifles and carbines, M24 and M107 sniper rifles, and M2 HB and MK19 machine guns.
  • Performance of fielded 25um systems.
    • Weight: HWTS: 3.9 pounds; MWTS: 2.9 pounds; LWTS: 1.9 pounds
    • Target recognition range: HWTS: 2,200 meters; MWTS: 1,100 meters; LWTS: 550 meters
    • Operational time: HWTS/MWTS: 6.5 hours (six lithium AAs); LWTS: 5 hours (four lithium AAs) at ambient
    • Magnification: HWTS: 10x/3.3x (narrow/wide); MWTS: 5x/1.66x (narrow/wide); LWTS: 3.1x/1.55x (narrow/wide)
  • Performance of fielded 17um systems.
    • Weight: HWTS: 2.63 pounds; MWTS: 2.17 pounds; LWTS: 1.75 pounds
    • Target recognition range: HWTS: 2,200 meters; MWTS: 1,100 meters; LWTS: 550 meters
    • Operational time: HWTS/MWTS/LWTS: 20 hours (four lithium L91 AA). All variants with one battery change at ambient
    • Magnification: HWTS: 7.98x/2.66x (narrow/wide); MWTS: 3.98x/1.33x (narrow/wide); LWTS: 2x/1x (narrow/wide)

Multifunction Aiming Light (MFAL), AN/PEQ-15, AN/PEQ-15A

PEQ 15 TM Pdf
PDF – 2.2 MB 8 downloads

The Multifunction Aiming Light (MFAL) family includes the AN/PEQ-15 Advanced Target Pointer Illuminator Aiming Light (ATPIAL) and the AN/PEQ-15A Dual Beam Aiming Laser–Advanced2 (DBAL-A2).

The AN/PEQ-15 and AN/PEQ-15A class 3B MFAL devices replace the AN/PAQ-4C. The infrared (IR) and visible aiming lasers are co-aligned. Soldiers can use the visible laser to bore-sight the device to a weapon without the need of night vision goggles. The IR lasers emit a highly collimated beam of IR light for precise weapon aiming, as well as a separate, IR-illuminating laser with adjustable focus. Soldiers can also select a visible red-dot aiming laser to provide precise aiming of a weapon during daylight or night operations. Soldiers can use AN/PEQ-15 and AN/PEQ-15A IR lasers as hand-held illuminator pointers, or weapon-mount them with included hardware.

  • AN/PEQ-15
    • Weight: 7.5 ounces
    • Effective range:
      • IR lasers: 600 meters low power/2,000 meters high power
      • Visible laser: 25 meters in daylight, but not in direct sunlight
    • Operational time: 5 hours with lasers(s) on Dual High
    • Power: One DL 123, 3-volt battery
  • AN/PEQ-15A
    • Weight: 8 ounces
    • Effective range:
      • IR lasers: 600 meters low power/2,000 meters high power
      • Visible laser: 25 meters in daylight, but not in direct sunlight
    • Operational time: 5 hours with laser(s) on Dual High
    • Power: One DL 123, 3-volt battery
