Friendly Vehicle Identification


HIGH MOBILITY MULTIPURPOSE WHEELED VEHICLE (HMMWV)

The High Mobility Multipurpose Wheeled Vehicle (HMMWV) is a lightweight, highly mobile, high-performance, diesel-powered four-wheel drive, air-transportable and air-droppable family of tactical vehicles. The HMMWV supports combat and combat service support units with a versatile, mission-configurable, tactical wheeled vehicle.

Gross vehicle weight: 11,500 pounds

 Wheelbase: 130 inches

 Engine: General Engine Products V8, 6.5-liter turbocharged diesel, 190 horsepower at 3,400 revolutions per minute

  Fuel Capacity: 25 gallons

  Payload: 3,350 pounds

  Maximum speed: 70 mph




M1126 Stryker Combat Vehicle

The Stryker interim armored vehicle (IAV) is a 19-ton, eight-wheeled armored vehicle that provides the Army a family of ten different vehicles on a common chassis. The Stryker comprises two variants - the Infantry Carrier Vehicle (ICV) and the Mobile Gun System (MGS). The ICV has eight additional configurations: Mortar Carrier (MC), Reconnaissance Vehicle (RV), Commanders Vehicle (CV), Fire Support Vehicle (FSV), Medical Evacuation Vehicle (MEV), Engineer Squad Vehicle (ESV), Anti-tank Guided Missile Vehicle (ATGM), and NBC Reconnaissance Vehicle (NBCRV).

Engine:Caterpillar C7, 350 hp

Armament:M2 .50 cal. machine gun or MK19 40mm grenade launcher mounted in a Protector (RWS) remote weapon station; .50-cal M2 MG and M240 7.62 mm MG

Crew:2

Range:300 mi

Speed:62 MPH


M-ATV

The Oshkosh MRAP All-Terrain Vehicle (M-ATV) is the high-mobility, high-protection medium tactical vehicle specifically engineered for treacherous environments. Derived from the Medium Tactical Vehicle Replacement (MTVR) platform, the M-ATV is a Mine Resistant Ambush Protected (MRAP) vehicle that incorporates the TAK-4 independent suspension system to provide proven, durable, best-in-class mobility. A battle-proven armor configuration provides survivable crew protection as the M-ATV maneuvers over the most grueling terrain.

 Crew: 4+1 gunner Engine: 7.2 liter inline-6 Caterpillar C7 turbodiesel Payload: 4,000 lbs Range: 320 miles Speed: 65 mph


International M1224 MaxxPro

MRAP provides light forces with protected mobility and mounted firepower to perform Wide Area Security while countering threats employing asymmetric tactics. They provide a rapid motorization capability for Brigade Combat Teams as the mission transitions from decisive operations to stability, or perform rear-area security during decisive operations.

 Key components (transmissions, engines, etc.) vary between vehicles, consisting of common commercial and military parts

 Combat weight (fully loaded without add-on armor): 34,000-48,000 pounds

 Payloads: In the 4,000-pound range

 Engine: 370-375 horsepower

 Operational range: 300-370 miles


Bradley Fighting Vehicle

Length: 20.5 feet
Width: 10.5 feet
Height: 9.7 feet
Weight: 24.8 tons (M2) 24.7 tons (M3)
Speed: 41 miles per hour
Range: 300 miles
Crew: 3
Passengers: 6 (M2) 2 (M3)

ARMAMENT
Primary: 25-mm. cannon

Secondary: 7.62-mm. machine gun
TOW missiles (two launch tubes)

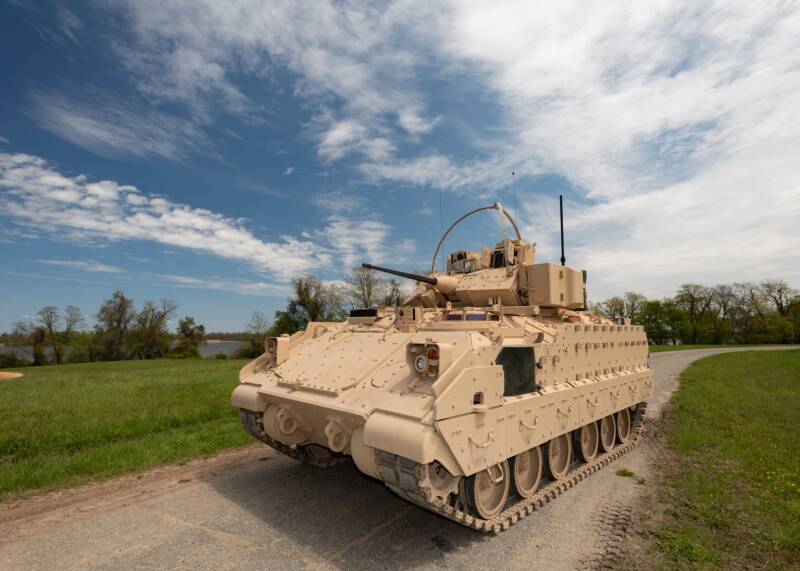

The M2 and M3 Bradley FIghting Vehicle is a lightly armored, fully tracked transport vehicle that provides cross-country mobility, mounted firepower and protection from artillery and small-arms fire. It is used in mechanized infantry and armored cavalry combat.

It possesses sufficient cross-country mobility to keep up with the M1 Abrams Main Battle Tank, medium and long-range firepower capable of defeating any vehicle on the battlefield, and is adequately armored to protect the crew from artillery and small arms threats. The Bradley is able to close with and destroy enemy forces in support of mounted and dismounted Infantry and Cavalry combat operations.

The Bradley Fighting Vehicle family currently consists of two vehicles: the M2 Infantry Fighting Vehicle and the M3 Cavalry Fighting Vehicle. Just as with its predecessor, the M113 family, the Bradley will eventually be the platform for a wide range of support vehicles.

Infantry can fight from inside the vehicle by using modified M-16 rifles mounted in firing ports or may dismount from the M2 version to fight on foot. The vehicle is armed with a 25mm cannon, effective against most armored targets, and with the TOW missile, effective against lightly armored targets out to its maximum range of 3,750 meters (2.3 miles).

The Bradley A2 ODS incorporates improvements identified after Operation Desert Storm, including an eye-safe laser rangefinder, global positioning and navigation systems and an enhanced driver’s vision device.

An optional Appliqué configuration provides situational awareness via the Force XXI Battle Command Brigade and Below (FBCB2) Appliqué computer system.

The Bradley A2 ODS is equipped with the Bushmaster 25mm cannon and TOW missile system, which delivers increased lethality and accuracy, especially under the toughest battlefield conditions.


M1A2 Abrams Main Battle Tank

Combat weight (tons): M1A1 SA – 67.6; M1A2 SEPv2 – 71.2; M1A2 SEPv3 – 73.6

Speed: 42 mph, 30 mph x-country

M1A1 SA: 120 mm/40 rounds

M1A2 SEPv2: 120 mm/42 rounds

Machine guns: .50 caliber – 900 rounds; 7.62 mm – 11,400 rounds

The Abrams Main Battle Tank closes with and destroys the enemy using mobility, firepower, and shock effect. The Abrams is a full-tracked, low-profile, land combat assault weapon enabling expeditionary Warfighters to dominate their adversaries through lethal firepower, unparalleled survivability, and audacious maneuver. The Abrams tank sends a message to those who would oppose the United States as to the resolve, capability, and might of the U.S. Army. A 1,500-horsepower turbine engine, 120 mm main gun and special armor make the Abrams tank particularly lethal against heavy armor forces.
